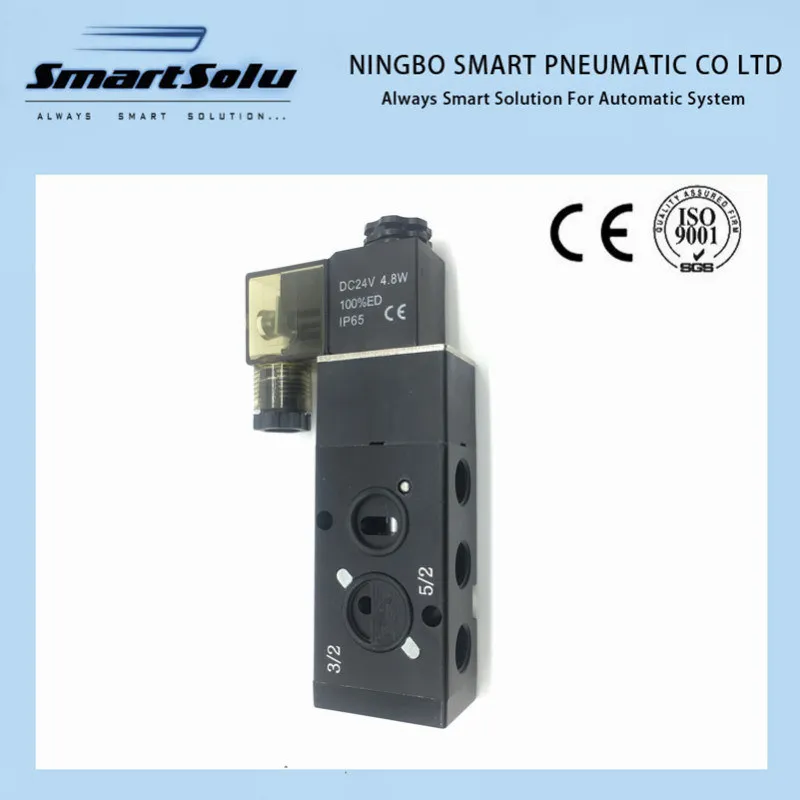

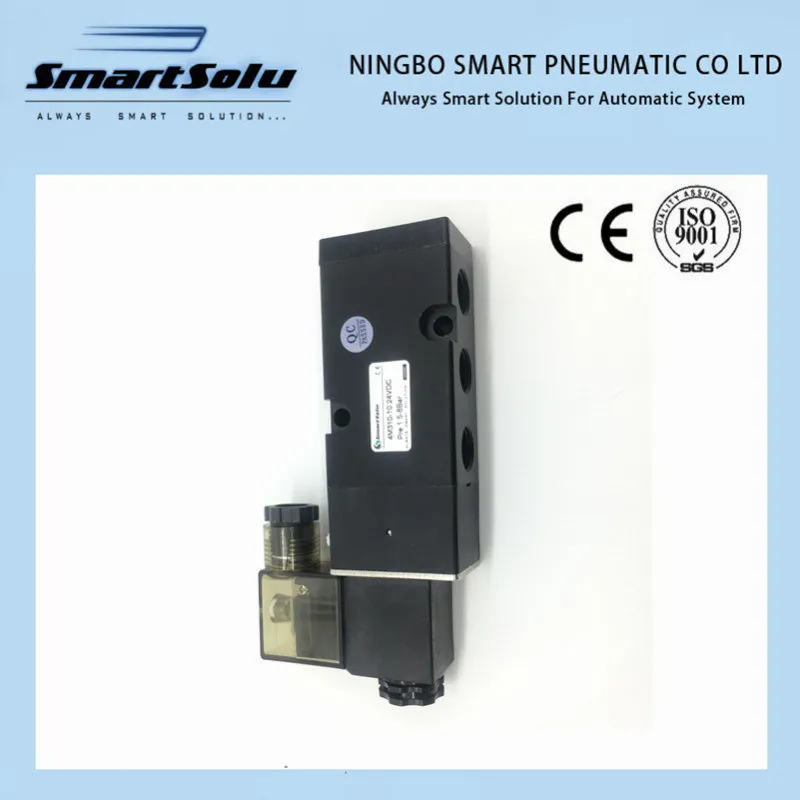

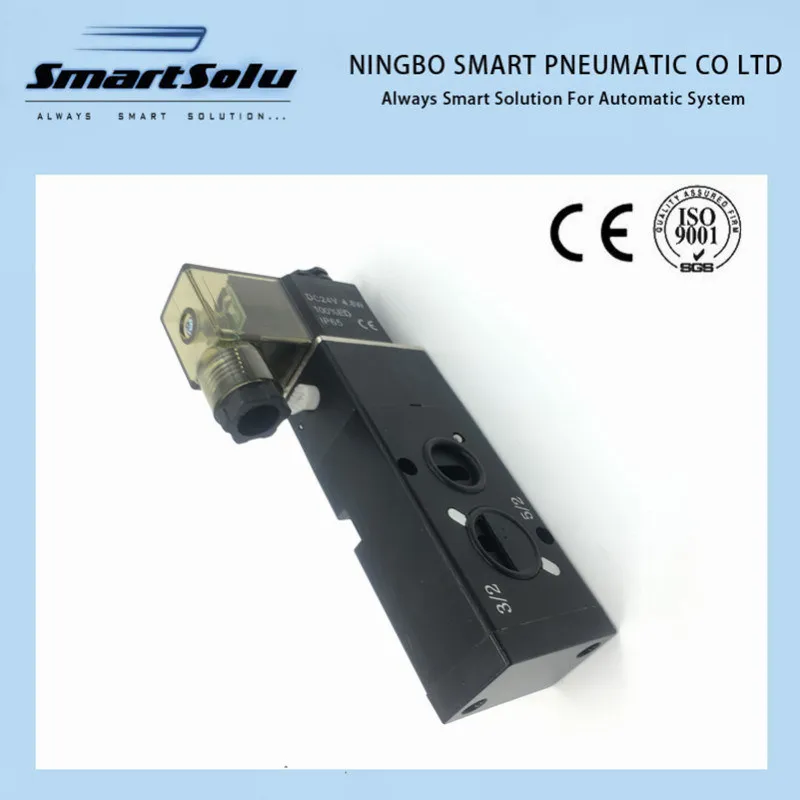

The solenoid valve (3/2-5/2 interchangeable) Namur standard is suitable for operating double or single acting rotary cylinders in pneumatic control systems. Designed to be assembled directly on the cylinder body or by sub-bases, this valve can be used with both dry and lubricated air supplies.

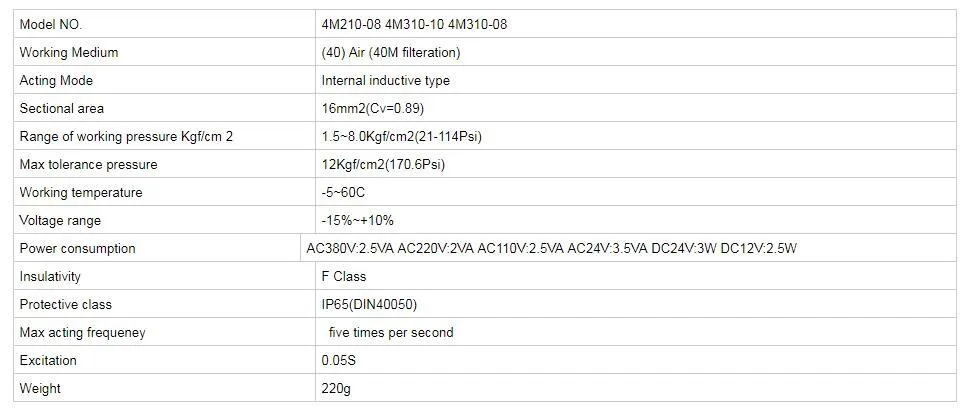

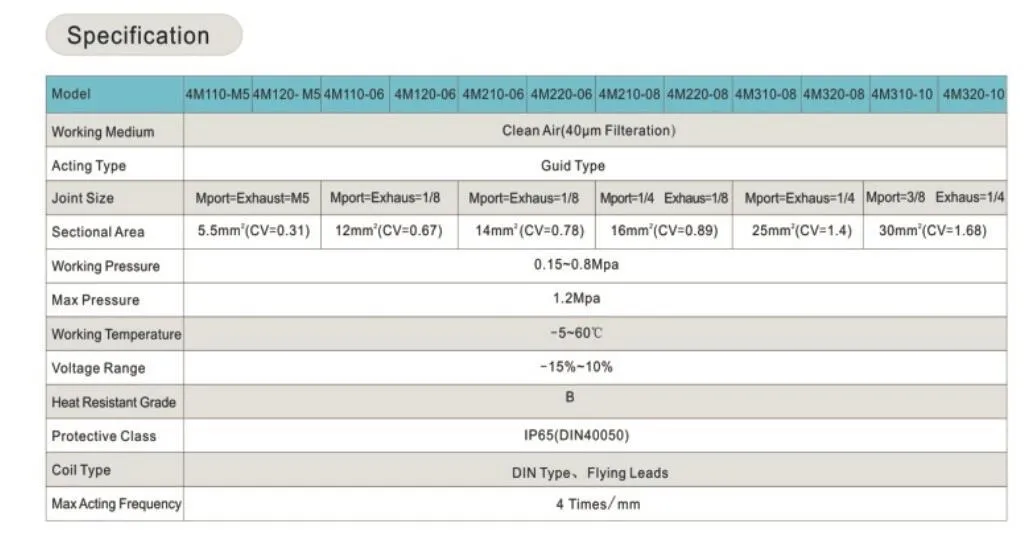

| Model | 4M310-08 |
| Working Medium | Clean Air (40um filtration) |
| Acting Type | Guide Type |
| Joint Size | Inport=1/4, Exhaust=1/8 |

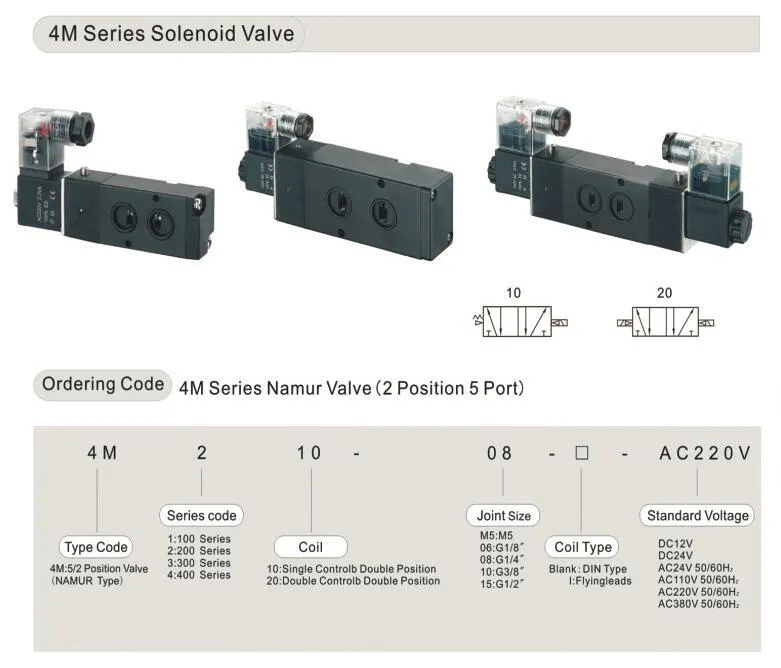

| Configuration | 2 Position 5 Port Single Control |
| Working Temperature | -5~60°C |
| Orifice | 1.2mm |
| Working Pressure | 0.15~0.8MPa |
| Coil Type | Din Type, Flying Leads |
| Max Acting Frequency | 4 Times/min |
One of the most fundamental and important components of any fluid power system is the directional-control valve. These valves are used to direct the flow of fluid through the system, controlling when and where the fluid flows.

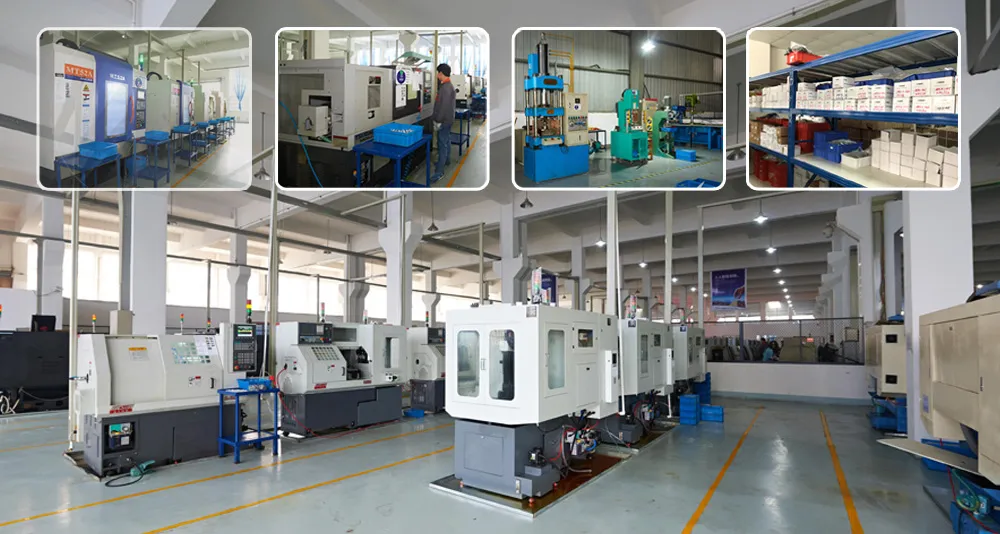

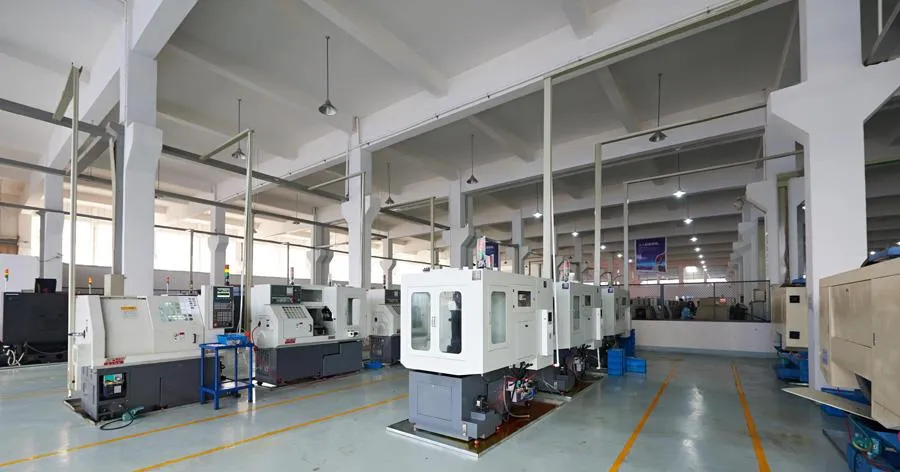

Established as a high-tech enterprise specialized in pneumatic components and microduct accessories, our facility operates multiple production lines. Our product range includes pneumatic vibrators, air cylinders, solenoid valves, air treatment units, and more, serving clients in over 60 countries.
