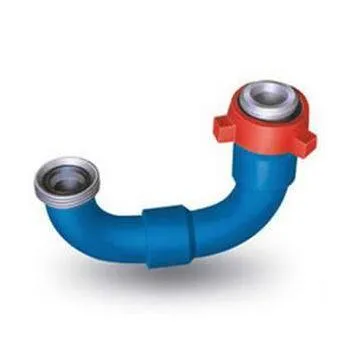

Style 10 Swivel Joints Hammer Union Crossover Fig 1502
High-pressure swivel joints are designed for mud, water, natural gas, and crude oil applications. Compatible with FMC, SPM, Weco, and Halliburton standards. These joints feature a 15,000 PSI Cold Working Pressure (CWP).
(Male X Male) Specifications
| Description |
Part Number |
CWP psi |
Weight lbs. |
| 1" 1502 MALE X 2" 1502 MALE | 1502MX1MA | 15,000 | 24 |
| 2" 1502 MALE X 2" 1502 MALE | 1502MX2MA | 15,000 | 27.8 |
| 3" 1502 MALE X 3" 1502 MALE | 1503MX3MA | 15,000 | 47.3 |
| 4" 1502 MALE X 4" 1502 MALE | 1504MX4MA | 15,000 | 111 |
(Female X Female) Specifications
| Description |
Part Number |
CWP psi |
Weight lbs. |
| 1" 1502 FEMALE X 1" 1502 FEMALE | 1501FX1FA | 15,000 | 8.3 |
| 2" 1502 FEMALE X 2" 1502 FEMALE | 1502FX2FA | 15,000 | 13.8 |
| 3" 1502 FEMALE X 3" 1502 FEMALE | 1503FX3FA | 15,000 | 21.9 |
| 4" 602 FEMALE X 4" 602 FEMALE | 6204FX4FA | 6,000 | 23.5 |
(Male X Female) Specifications
| Description |
Part Number |
CWP psi |
Weight lbs. |
| 2" 1502 MALE X 2" 1502 FEMALE | 1502MX2FA | 15,000 | 20.8 |
| 3" 1502 MALE X 3" 1502 FEMALE | 1503MX3FA | 15,000 | 34 |
| 4" 1502 MALE X 3" 1502 FEMALE | 1504MX3FA | 15,000 | 70.2 |
